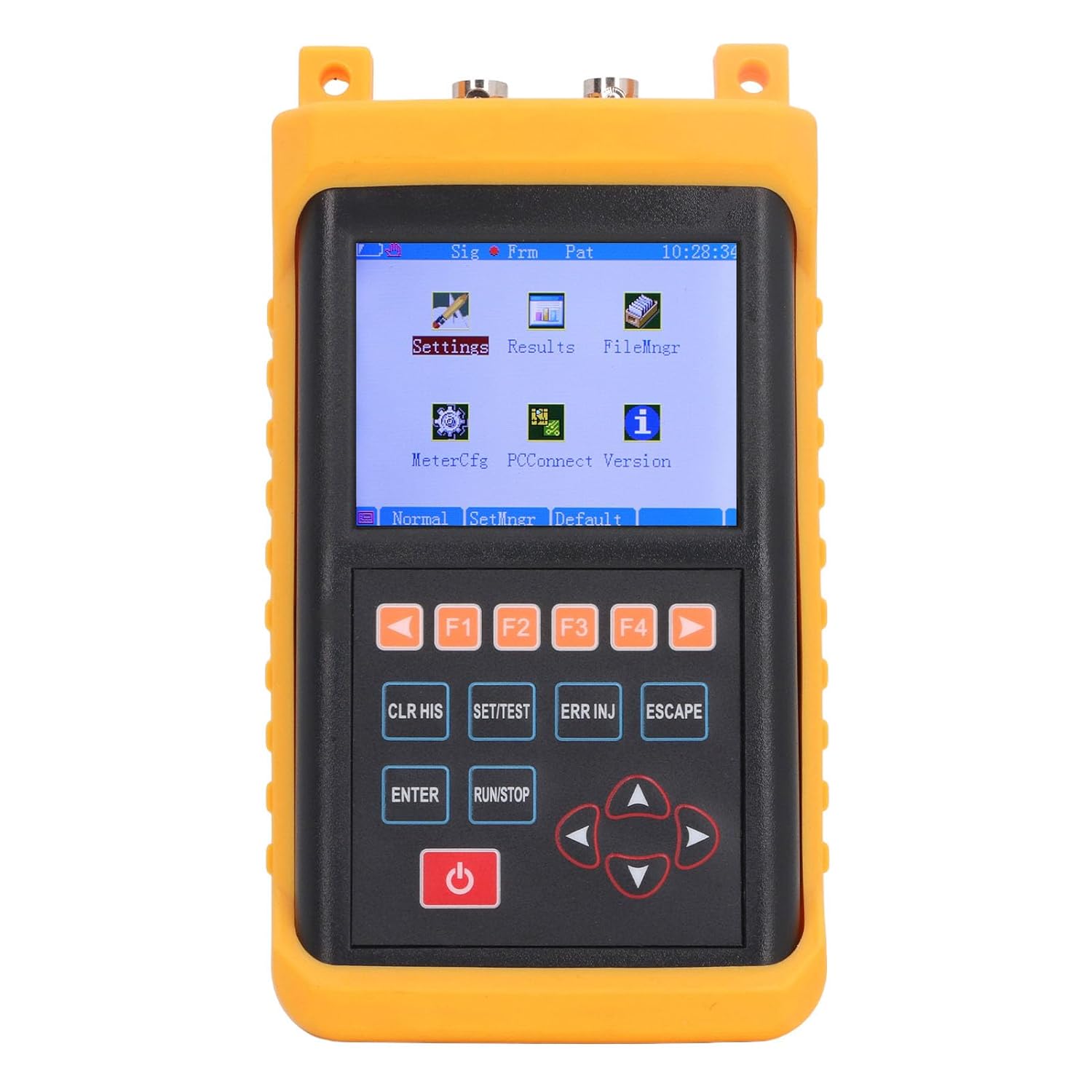

Data Transmission Performance Analyzer Portable Bit Error Rate TesterAC100‑ (US Plug)

Specification: Item Type: Bit Error Rate Tester Material: ABS Battery: 7.4V 105065 Rechargeable Lithium Battery x 1 Battery Capacity 2000mAh [Comes with built in battery] Working Time: 5 hours Charging: 3 hours when turned off; 12 hours when turned on Interface Support: E1 Link, compliant with G.703(E1) testing function (75, 120 ohms) Testing Rate: 2.048Mbps, N (continuous) and M (non continuous) x 64Kbps (N and M=1 to 31); insert, extract N or Mx64kbps; Frame Type: Unframed, PCM 30, PCM 30c, PCM 31, PCM 31c, compliant with ITU T G.704; supports automatic frame structure detection Line Coding: HDB3 and AMI Sending End: Internal Clock: 2.048MHz±5ppm; receive Line Coding: HDB3 and AMI; Pulse Shape: Compliant with for ITU T G.703 Error Insertion: BIT, CODE, BIT and CODE; single or 1x10-1 to 1x10-7 rates; Receiving End: Frequency Range: 2.048Mbps±8000bps; Return Loss compliant with ITU T G.703; Jitter Tolerance compliant with ITU T G.823; Measurements: E1 Receive Frequency Measurement E1 Receive Level Code BPV Errors (error count and rate) Frame Errors (FAS, MFAS, and CRC 4 error

• EASY TO USE HANDHELD DESIGN: Features convenient with high resolution color backlit LCD display for accurate readings.
• CUSTOMIZABLE SETTINGS: Save or recall 7 user defined configurations and 7 result groups for efficient testing and analysis.
• AUTOMATIC TIMER CONTROL: The tester can schedule test runs and stops with the timer feature for automated
• ANALYSIS FOR ALARMS: The network analyzer identify and analyze alarm events with detailed listing for quick troubleshooting.
• VERSATILE DIGITAL NETWORK TESTER: Specifically designed for channel testing, alarm analysis, fault location, and analysis in digital networks.
